Object Detection

Object detection combines classification and localization to locate objects in an image using bounding boxes. This tutorial describes how to use the cvtk package to build and train an object detection model, covering the process from training to inference.

Note

The cvtk package internally uses functions from torch (PyTorch), mmcv (MMCV), mmengine (MMEngine), and mmdet (MMDetection) packages for object detection tasks. Make sure that torch, mmcv, mmengine, and mmdet are installed correctly without any errors before using cvtk.

import torch
import mmcv
import mmengine
import mmdet
print(f"torch {torch.__version__}")
print(f"mmcv {mmcv.__version__}")
print(f"mmengine {mmengine.__version__}")
print(f"mmdet {mmdet.__version__}")

Preparation

The cvtk deploy-model command can generate source code for detecting objects in images.

cvtk deploy-model --script_name det.py --backend mmdet --task det

This command generates a file named det.py, containing simple source code for object detection. All complex functionality is imported from the cvtk package, making the code easy to read and helping beginners understand the deep learning workflow.

By default, Faster R-CNN (faster-rcnn_r101_fpn_1x_coco) is used. Users can change 'faster-rcnn_r101_fpn_1x_coco' to another network architecture by editing the generated source code. Available architectures can be found on the MMDetection GitHub repository (e.g., mmdetection.configs) or searched using the mim search command (e.g., mim search mmdet --model "faster-rcnn").

For users familiar with deep learning, it is recommended to run cvtk deploy-model with the --vanilla argument. This generates source code that uses only torch and mmdet functions, without relying on cvtk. The resulting script can be shared with others who do not have cvtk installed, or customized further, for example, by adding data augmentation or changing optimization algorithms.

cvtk deploy-model --script_name det.py --backend mmdet --task det --vanilla

Model Training and Validation

Training and validation can be performed by executing the generated source code, providing the training, validation, and test datasets along with the label file as follows.

python det.py train \
    --label ./data/strawberry/label.txt \
    --train ./data/strawberry/train/bbox.json \
    --valid ./data/strawberry/valid/bbox.json \
    --test ./data/strawberry/test/bbox.json \
    --output_weights ./outputs/strawberry.pth

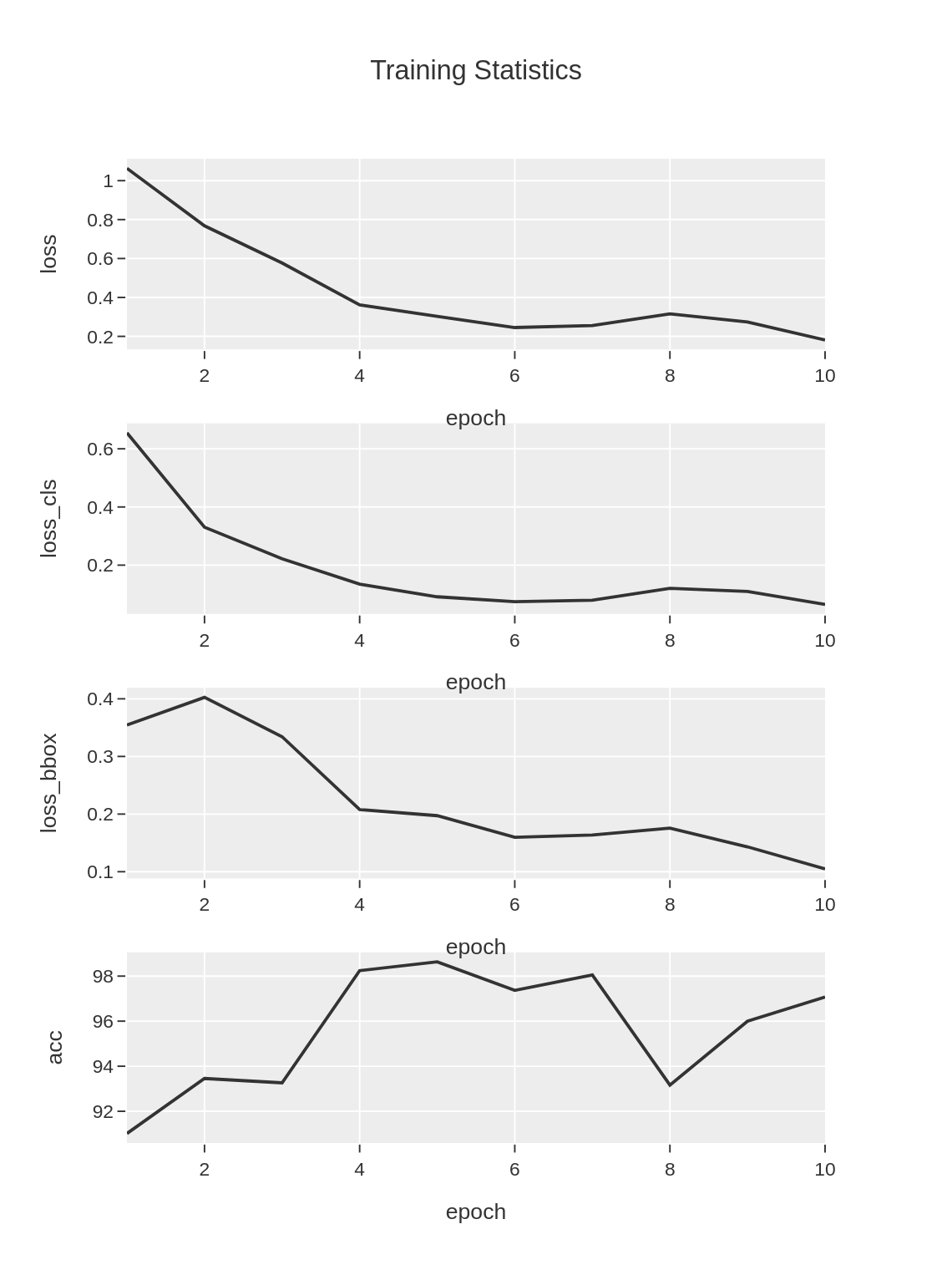

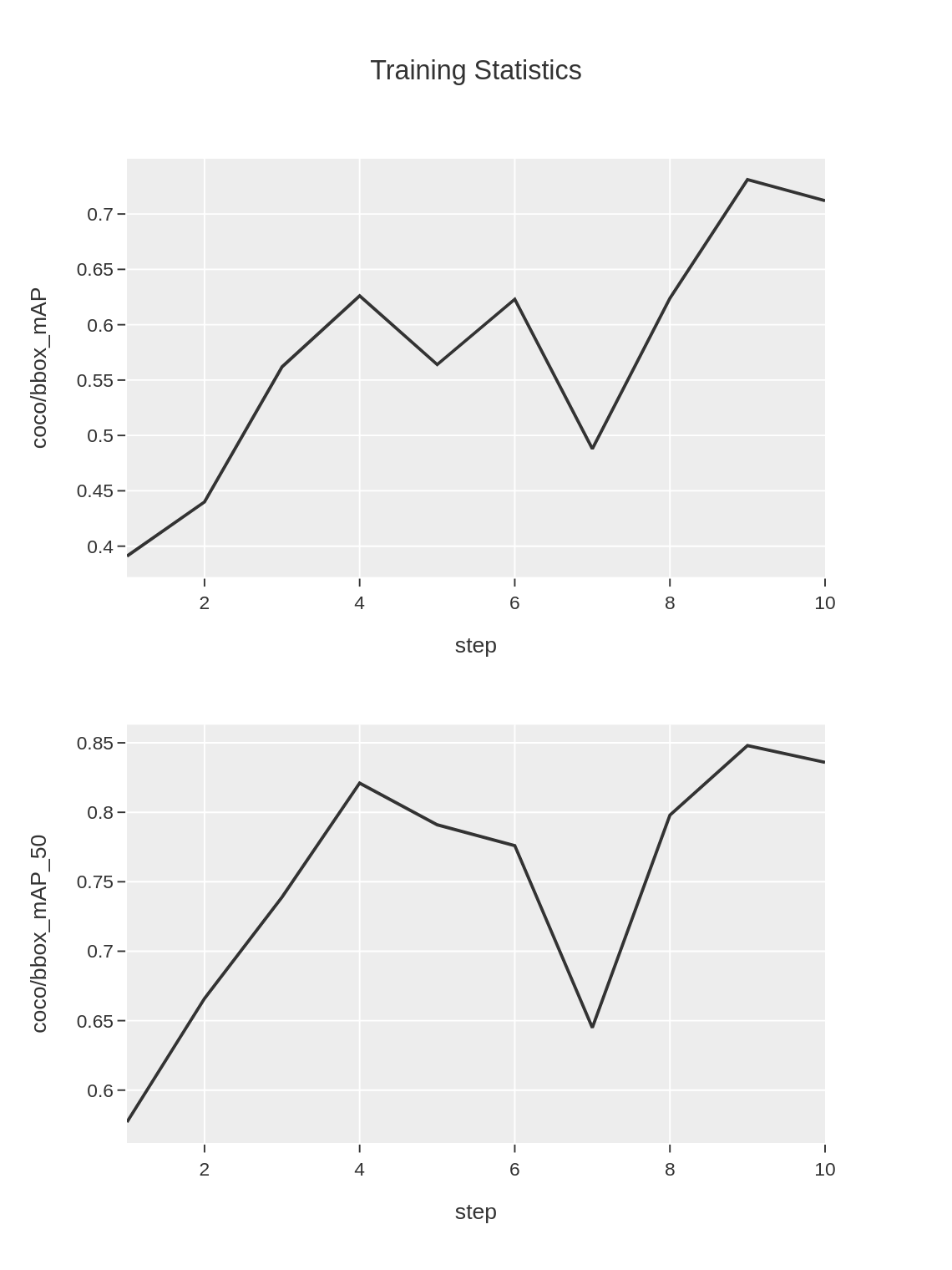

In this example, the weights of the trained model will be saved in strawberry.pth. The loss and accuracy data during training will be saved in strawberry.train_stats.train.txt and strawberry.train_stats.valid.txt, and figures based on these files will be generated. Both text files are tab-separated, for example.

strawberry.train_stats.train.txt

epoch       lr      data_time       loss    loss_rpn_cls    loss_rpn_bbox   loss_cls        acc     loss_bbox       time    memory
1   0.00118 0.01257 1.02703 0.03094 0.01944 0.64004 87.11   0.33662 0.29475 5539
2   0.00238 0.00299 0.76210 0.01812 0.01460 0.33093 86.33   0.39846 0.26212 5539
3   0.00358 0.00301 0.57181 0.00795 0.01284 0.21356 90.82   0.33746 0.25949 5540
4   0.00478 0.00294 0.38031 0.00404 0.01285 0.13385 98.83   0.22957 0.25895 5539
5   0.00599 0.00310 0.31583 0.00283 0.01200 0.10026 98.34   0.20074 0.26831 5540


strawberry.train_stats.valid.txt

coco/bbox_mAP       coco/bbox_mAP_50        coco/bbox_mAP_75        coco/bbox_mAP_s coco/bbox_mAP_m coco/bbox_mAP_l data_time       time    step
0.324       0.444   0.37    0.0     -1.0    0.345   0.0741  0.1943  1
0.36        0.572   0.377   0.0     -1.0    0.379   0.00577 0.12346 2
0.587       0.8     0.708   0.0     -1.0    0.608   0.00525 0.12246 3
0.608       0.829   0.78    0.0     -1.0    0.63    0.00525 0.12281 4
0.583       0.817   0.807   0.0     -1.0    0.606   0.00823 0.13745 5


The model will be evaluated on the test dataset when test data are provided. The test results will be saved in the workspace (strawberry directory) as test_outputs.coco.json in COCO format. The test performance metrics (e.g., mAP) will be saved in strawberry.test_stats.json in JSON format. The stats element in the JSON format file contains the mean metrics across all classes, while metrics for each class are stored in class_stats.

{
    "stats": {
        "AP@[0.50:0.95|all|100]": 0.867,
        "AP@[0.50|all|1000]": 0.937,
        ...
    },
    "class_stats": {
        "flower": { "AP@[0.50:0.95|all|100]": 0.925, ... },
        "green_fruit": { "AP@[0.50:0.95|all|100]": 0.967, ... },
        "red_fruit": { "AP@[0.50:0.95|all|100]": 0.710, ... }
    }
}

If validation or test data are not available, the model can still be trained using only the training dataset, as shown below.

python det.py train \
    --label ./data/strawberry/label.txt \
    --train ./data/strawberry/train/bbox.json \
    --output_weights ./outputs/strawberry.pth

Users can also customize various training parameters, such as the number of epochs, batch size, and number of data-loading workers, by editing the default values in the train function inside det.py.

Inference

Performing inference using the trained model can be done directly from the command line. The target images should be specified with the --data argument, which can be either a text file containing image paths (one path per line) or a directory containing images.

python det.py inference \
    --label ./data/strawberry/label.txt \
    --data ./data/strawberry/test/images \
    --model_weights ./outputs/strawberry.pth \
    --output ./outputs/inference_results

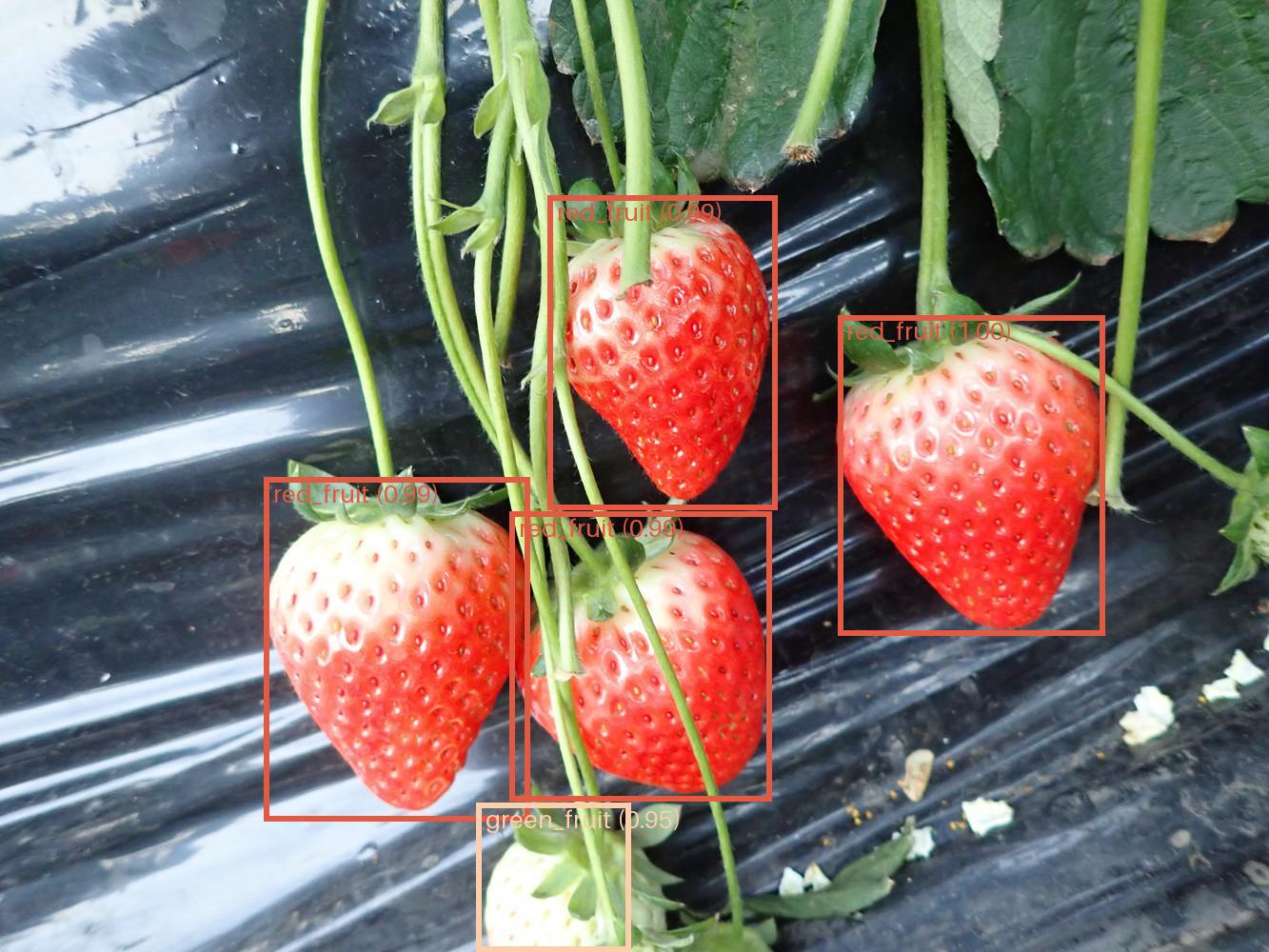

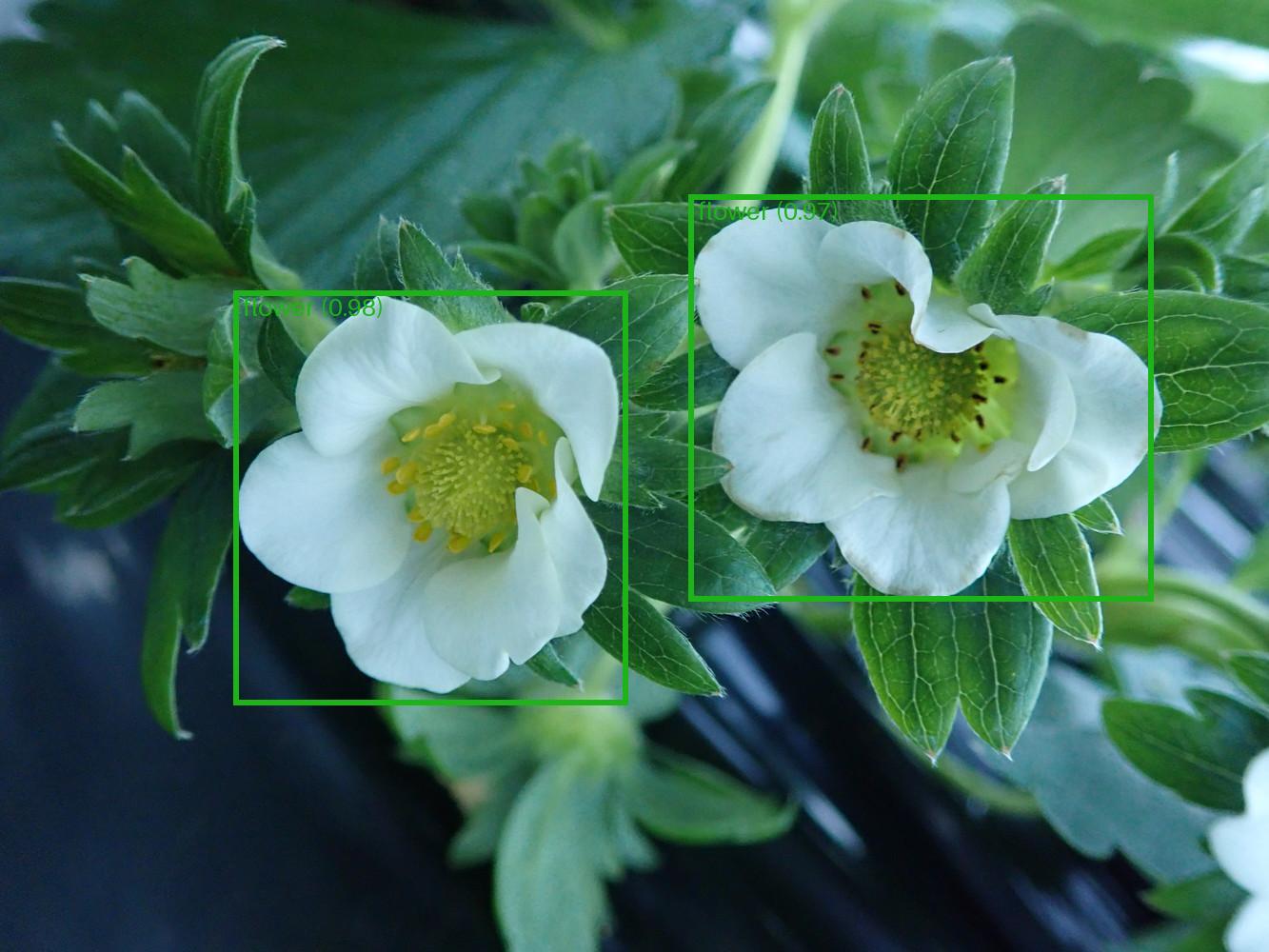

The inference results for each image (i.e., images with predicted bounding boxes) will be saved in the inference_results directory. Additionally, a COCO format file containing all predicted annotations will be saved as instances.coco.json. The following are examples of the output images.
